shutter door roll forming machine manufacturer from China Wuxi Suhang Machinery Manufacturing Co.,Ltd

Place of Origin:

Jiangsu, China (Mainland)

Product Detail

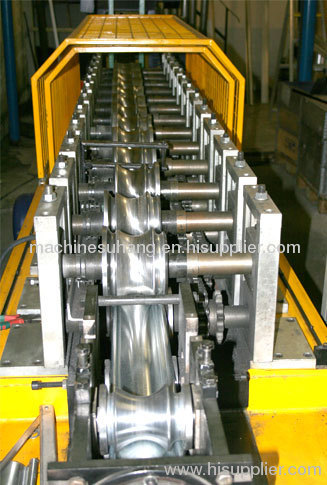

Metal shutter door forming machine
1.lower consumption
2.Factory direct price
3.Design by COPRA@ software
Detailed Product Description
Met

1.Roller Shutter Door and Window Roll Forming Machine Technical Process

Strip Steel → Guided Feeding → Roller Molding→ Cutting to Length→ Collection Table

2.Roller Shutter Door and Window Roll Forming Machine Technical Parameters

1. Main Motor Power: 22 Kw

2. Cycloidal Pinwheel Reduction Box: BWD22-43-22kw

3. Drive Sprocket:Pitch of 25.4mm

4. Rack:I-beam welding adopted and destressing

5. Unit Dimensions: 15 m long, 1.1 m wide, and 1.2m high

6. Production Speed:0-15m/min

7. Axle Diameter:45 mm and thermal refining

8. Number of Forming Stations: 13

9. Forming Shear Blade Material: Cr12

10.Heat Treatment of Sharing Blade: HRC58°C-62°C

11.Rolling Thickness:0.5-1.5mm

12.Rolling Material:GCr15

13.The product dimensions is up to the PRC's standard for Construction Product: GB/T12755-91

14. Scale Accuracy:10m±2mm
