Corrguated Curving Machine roll forming machine

Price:	22500.0~120000.0 RMB
Payment Terms:	T/T,L/C
Place of Origin:	Jiangsu, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: YX-30-200-993

Packing: naked

Power: Hydraulic

Machine Type: Roll Forming Machine

Automation: Manual

Material / Metal Processed: Carbon Steel

Production Capacity: 30sets per month

Delivery Date: 45-90 DAYS

Raw Material: Sheet / Plate Rolling

Extra Services: Cut To Length

Certification: CE

Brand Name: Wuxi Suhang Machinery

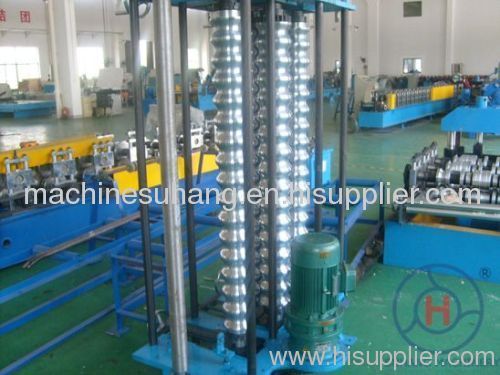

Corrguated Curving Machine

Curving Machine

Model:CUR-01
\Main Parameter:
1. Dimension:2800×1800×1630
2. Model: Max C-03
3. Forming angle:15M/min
4. Thickness:0.35 mm-0.8 mm
5. Forming minimum Radii: 400 mm(Radii for Forming semi-circle: 550 mm
6. Hydraulic: 11 KW
7. Pump model:63SCY-Y160L-4
8. Transmission reducer model:WWJZ5025DZ
9. Stepper motor:A41K-G599(with driver 0.75 KW)
10. Cutting mode material:40Cr, quenched, nitrogenization
11. Control:PLC

\Working Process

Feeding device-------Drive device------- Forming-------Hydraulic cutting
